空氣濾清器殼正反拉伸復合模設計

文件大小： 707.63 KB
下載次數：
文件評級：
更新時間：2016-02-14
發布人： 184819733

文件下載：

上傳的文件被下載可獲得積分！
積分可下載資料或者提取人民幣！
Ctrl + d 可將本頁面加入收藏夾

文件介紹：
該文件為 rar 格式（源文件可編輯），下載需要 20 積分

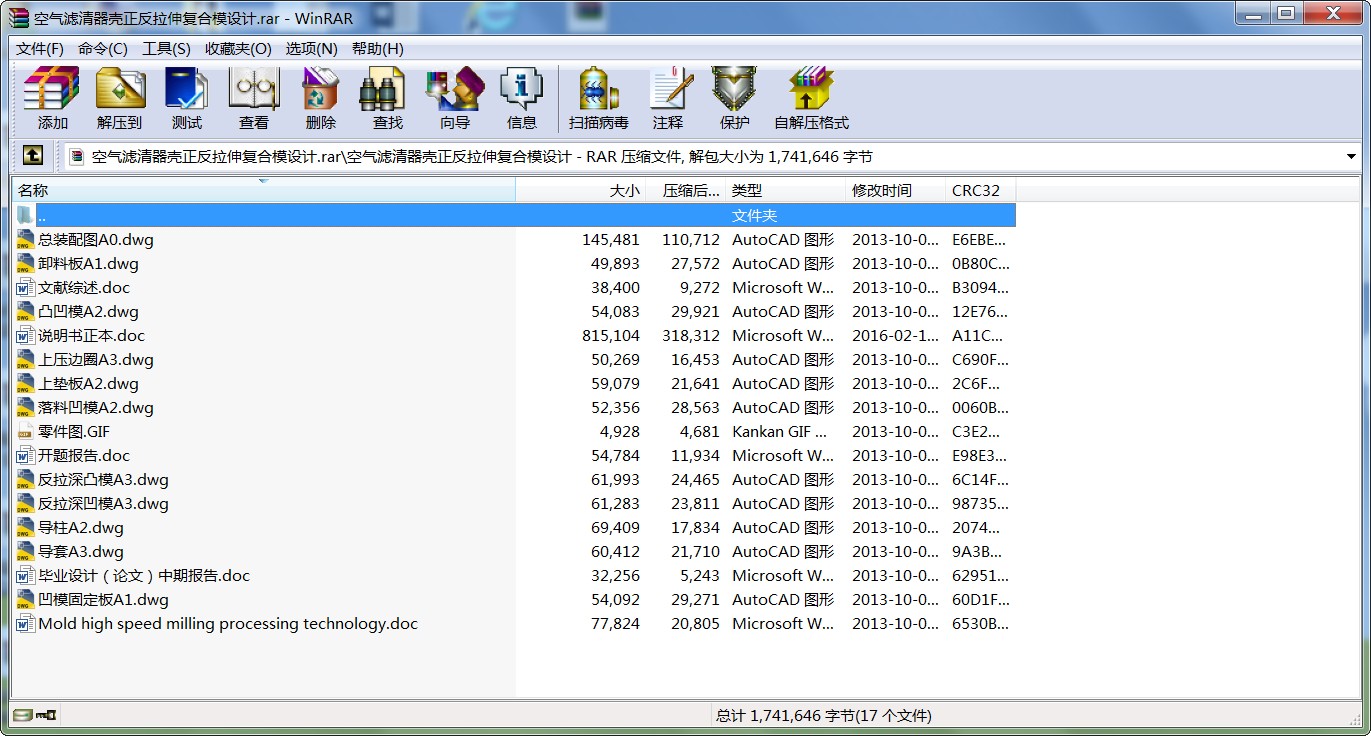

空氣濾清器殼正反拉伸復合模設計.rar
ABSTRACT

Develops unceasingly along with the Chinese industry, the mold profession also appears more and more importantly. The present paper then is designs the processing air filter shell the mold. First has carried on the processing craft and the structure craft analysis to the processing components. Proposed through the computation semifinished materials size and the drawing coefficient four kind of plans, finally determined uses falls the material, the pro and con drawing superposable die. Has made the reasonable arrangement to the mold platoon type, enables the material use factor to achieve the high level. Has calculated each ramming craft strength which in the ramming process needs, including falls nearby the material strength, the ex-denning strength, the pressure the strength, the drawing strength, the top material strength and so on, and has carried on the reasonable tonnage primary election to the press. The superposable die has used the true thing form in the structure, calculated fell the material, the drawing and the counter- drawing effective range size. Closed has carried on the reasonable determination highly to the mold, but also designs the mold the major parts to fall the material concave mold, the convex-concave mold, the counter- drawing raised mold, the counter- drawing concave mold, the concave mold dead plate and so on. Listed the mold to need the components the detailed detailed list, and has produced the reasonable assembly drawing. Because the drawing depth is big, also carried on the power to the press electrical machinery to examine and to propose the lubrication attachment working procedure, could cause the drawing smoothly to complete. Finally led the wrap to mold major parts to carry on the simple processing craft route formulation. This design regarding uses the single acting press to carry on the pro and con drawing to have the certain reference function.

Key words graduation thesis; mold design; superposable die; pro and con drawing

目錄

1 分析零件的工藝性 1
2 確定工藝方案 2
2.1 計算毛坯尺寸 2
2.2 計算拉深次數 4
2.2.1 正拉深 4
2.2.2 反拉深 5
2.3 確定工藝方案 5
3 主要工藝參數的計算 6
3.1 確定排樣、裁板方案 6
3.2 確定各中間工序尺寸 8
3.3 計算工藝力、初選設備 9
3.3.1 落料、正拉深過程 9
(1) 落料力 9
(2) 卸料力 9
(3) 拉深力 10
(4) 壓邊力 10
3.3.2 反拉深過程 11
(1) 反拉深力 11
(2) 頂料力 11
3.3.3 拉深功的計算 11
3.3.4 初選壓力機 11
4 模具的結構設計 13
4.1 模具結構形式的選擇 13
4.2 模具工作部分尺寸計算 13
4.2.1 落料 13
4.2.2 正拉深 15
4.2.3 反拉深 16
5 選用模架、確定閉合高度 16
5.1 模架的選用 16
5.2 模具的閉合高度 16
5.3 壓力中心 17
6 模具的主要零部件結構設計 17
6.1 落料凹模 17
6.2 凸凹模 18
6.3 反拉深凸模 19
6.4 反拉深凹模 20
6.6 上墊板 23
6.7 凹模固定板 24
7 模具的整體安裝 25
7.1 模具的總裝配 25
7.2 模具零件 26
8 選定沖壓設備 27
8.1 壓力機的規格 27
8.2 電動機功率的校核 28
9 附加工序 29
10 主要零件的加工 29
11 總結 32
參考文獻 33
致謝 34

1 分析零件的工藝性

沖壓件工藝性是指沖壓零件在沖壓加工過程中加工的難易程度。雖然沖壓加工工藝過程包括備料—沖壓加工工序—必要的輔助工序—質量檢驗—組合、包裝的全過程，但分析工藝性的重點要在沖壓加工工序這一過程里。而沖壓加工工序很多，各種工序中的工藝性又不盡相同。即使同一個零件，由于生產單位的生產條件、工藝裝備情況及生產的傳統習慣等不同，其工藝性的涵義也不完全一樣。這里我們重點分析零件的結構工藝性。
該零件是空氣濾清器殼，從圖1.1中我們可以看出該零件的精度要求不是很高，但要求有較高的鋼度和強度。在零件圖中，尺寸為IT14級，其余尺寸未標注公差，可以按自由公差計算和處理。零件的外形尺寸為，屬于中小型零件，料厚為1.5mm。 ...
